Composite_high_speed_precision_amplifier

Published:2009/7/23 21:21:00 Author:Jessie | From:SeekIC

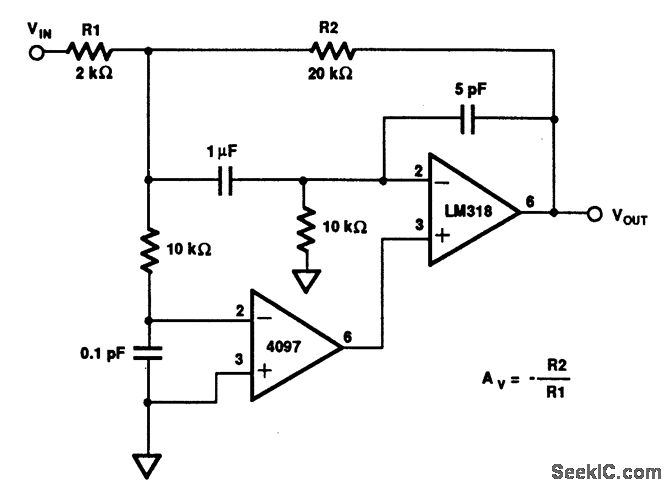

This circuit provides a gain of 10 with the values shown.
