Clipping_amplifier_using_an_ECG941_941D_941M_operational_amplifier

Published:2009/7/19 21:28:00 Author:Jessie | From:SeekIC

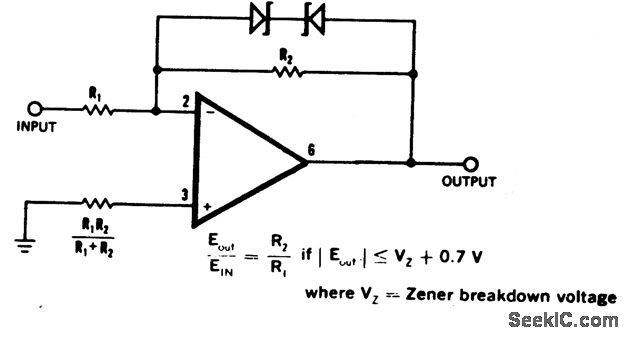

Clipping amplifier using an ECG941/941D/941M operational amplifier. Typical supply voltage is±15 volts (courtesy GTE Sylvania Incorporated).
