Cable_sense_amplifier_for_loop_through_connections

Published:2009/7/24 20:42:00 Author:Jessie | From:SeekIC

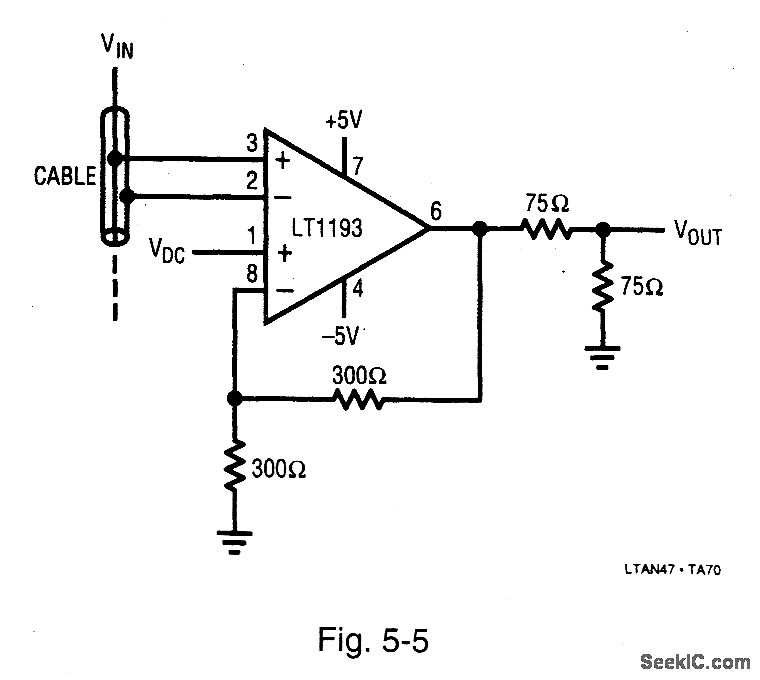

Figure 5-5 shows a differential amplifier used to extract signals from a distribution cable. The amplifier differential inputs reject common-mode signals. Amplifier performance includes 0.02% differential-gain and 0.1° differential-phase errors. A separate input permits dc adjustment. LINEAR TECHNOLOGY, APPLICATION NOTE 47, P. 33.
