CONSTANT_OUTPUT_IMPEDANCE

Published:2009/6/25 21:47:00 Author:Jessie | From:SeekIC

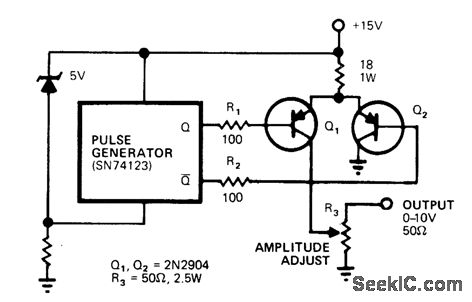

Pulse output stage gives output range from millivolts to 10 V P-P across 50 ohms while optimizing waveform characteristics of output pulse. With 2N2904 output transistors, circuit delivers 200 mA with 20-ms rise and fall times.-W. A. Palm, Pulse Amplifier Varies Amplitude, EDN Maga-zine, Aug. 5, 1978, p 76.
