CONSTANI_CURRENT_CAPACITOR_CHARGER

Published:2009/7/14 5:08:00 Author:May | From:SeekIC

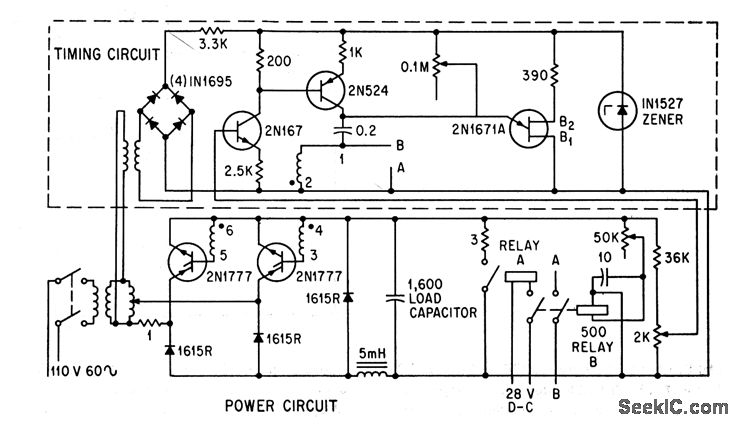

Firing angle of a-c supply voltage is decreased in steps after each supply cycle, to match charging rate of 360-mfd capacitor for 30-kw plasma pinch space engine. So current pulses have identical average peak of 8.6 amp.-F. Ellern. Capacitance Chargers for Space Employ Controlled Rectifiers, Electronics.36:41,p32-33
