COMPUTE_AMPLIFIER

Published:2009/7/14 3:05:00 Author:May | From:SeekIC

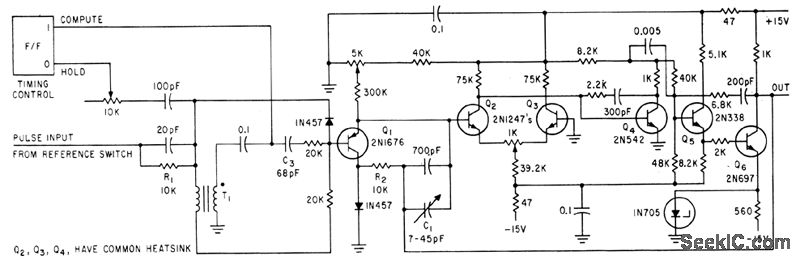

Converts digital output of reference switch for switch decoder to equivalent analog voltage and holds voltage for transfer to hold amplifier.-R. M, Centner and J. R. Wilkinson, New Approach to Serial Decoding Eliminates Static Storage, Electronics, 35:34, p 32-35.
