COMPRESSOR_1

Published:2009/6/29 23:59:00 Author:May | From:SeekIC

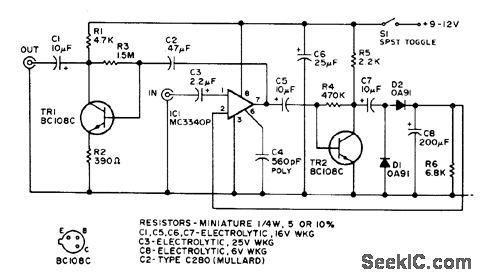

Keeps output voltage constant as long as input signal is kept above AP threshold level. Opamp is MC3340P. -Circuits, 73 Magazine, Holiday issue 1976, p 170.
