COMPLEMENTARY_PAIR_LOW_LEVEL

Published:2009/7/14 5:50:00 Author:May | From:SeekIC

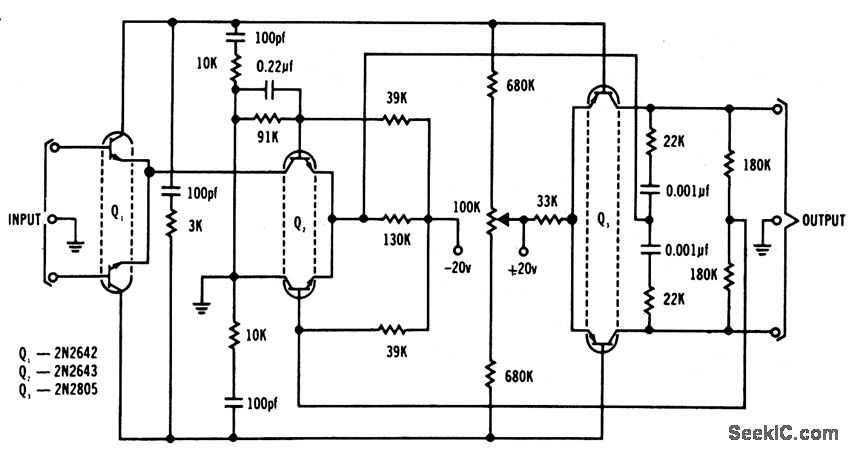

Dual transistors provide extremely high gain, to give greater stability with fewer stages. Circuit has low drift and high common-mode rejection (120 db) for either differential or single-ended outputs. Differential input impedance is 500K minimum, gain-bandwidth product is 5Mc, and low-frequency voltage gain is 68 db.-Texas Instruments Inc Solid-Slate Communications, McGraw-Hill,N.Y.1966, p290.
