COMPLEMENTARY_IRANSISIOR_AMPLIFIER

Published:2009/7/10 1:38:00 Author:May | From:SeekIC

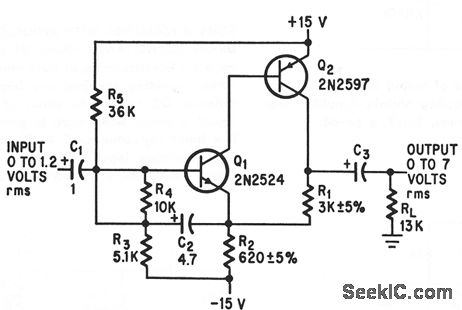

Bootstrapping and negctive loodback Provide 220,000-ohm input impedance and 60,000-ohm ootput impedance with stabilized gain over wide temperaturer range.-L.J.Ernst,Complementary Electronics,37:16,p 92-93.
