CNY44 analog isolation circuit

Published:2011/6/11 1:37:00 Author:chopper | Keyword: analog, isolation | From:SeekIC

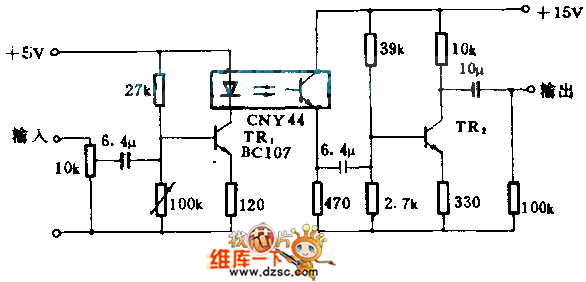

This circuit can be used when the analog signals is transmitted among equipment of different earth potential.The 3 dB bandwidth of the circuit is between 6HZ and 80KHZ,and between 100KHZ and 20KHZ,the total harmonic distortion is less than 1.5% when +8V(peak-peak) outputs power Level.
