CNC lathe test circuit

Published:2011/5/2 19:19:00 Author:Christina | Keyword: CNC, lathe test | From:SeekIC

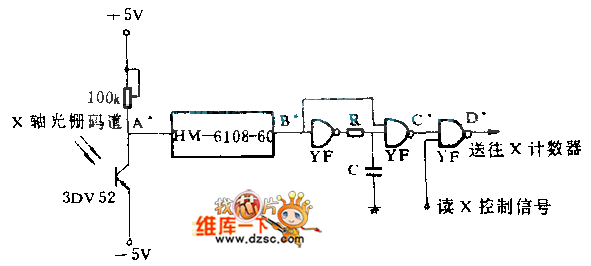

This circuit converts the X-axis's (or Y axis) rotation angle into the optical pulse, and then the photodiode 3DU52 converts the optical signal into electric signal, and outputs the pulse by GD plastic RC circuit to the counter, to achieve closed-loop control system.
