CMoy Pocket Amplifier

Published:2013/4/26 1:33:00 Author:muriel | Keyword: CMoy Pocket Amplifier | From:SeekIC

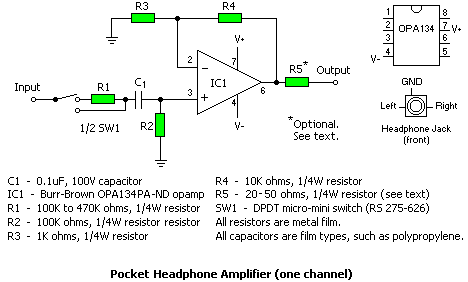

This is a very simple headphone amplifier designed by CMoy.Each channel uses a single Burr-Brown OPA134 opamp in a non-inverting configuration. It has adequate current capability to drive most headphones without an output stage.The amplifier is ideal as a booster for power-conserving stereo sources such as portable CD players and for interfacing with passive EQ networks such as tone controls or a headphone acoustic simulator.
