CMOS_DRIVER_FOR_OPAMP

Published:2009/7/2 20:43:00 Author:May | From:SeekIC

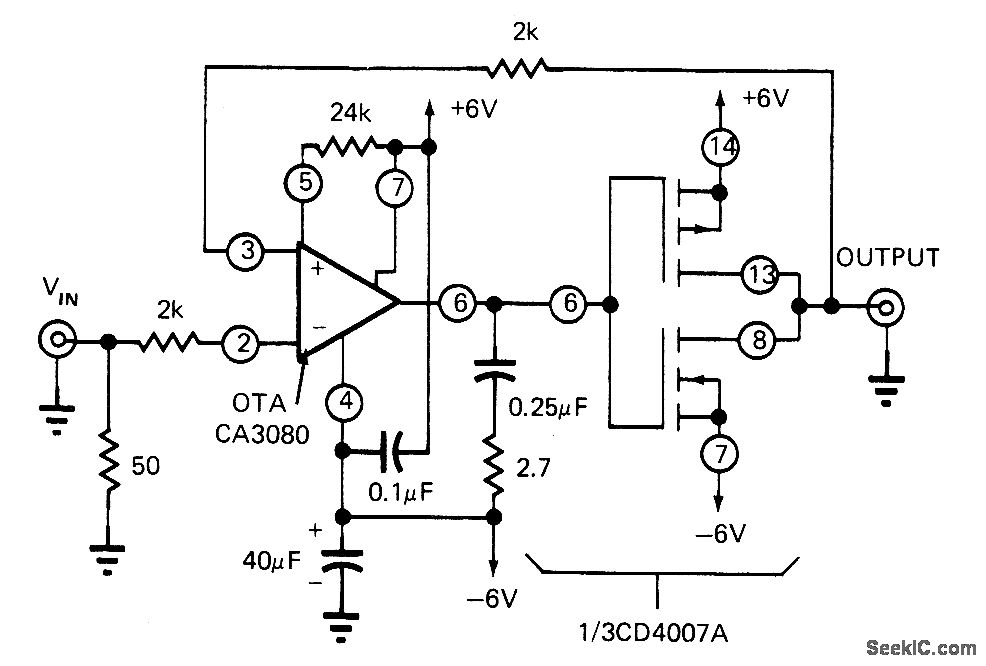

CMOS inverterpalr(one-third of CD4007A) iS used in closedloop mode as unity-gain voltage follower for CA3080 opamp .Slew rateis 1 V/μS Output current capability of 6 mA can be increased by paralleling two other sections of CMOS．－B Furlow.CMOS Gates in Linear Applications： The Results Are Surprisingly Good.EDN Magazlne．March 5.1973.p42－48.
