CF148 series dual power universal quad op amp circuit diagram

Published:2011/5/13 4:37:00 Author:Rebekka | Keyword: dual power universal, Quad op amp | From:SeekIC

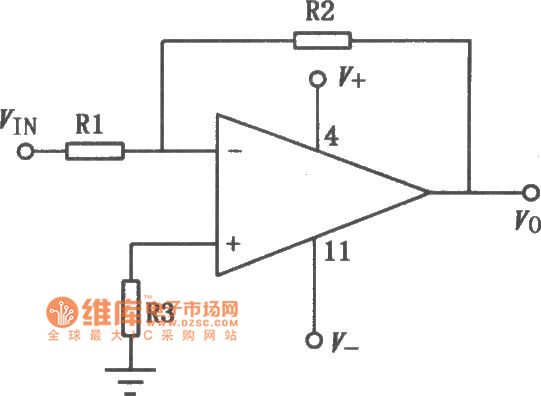

CF148 series include four high-performance amplifier units. Each unit's performance is similar with gA741 op amp. It is with high gain, internal compensation, low power consumption, 4 op amp quiescent current phases are similar with μA741. This series uses internal accurate isolation technology. It is suitable for the occasions that requires multiple μA741. The similar or direct substitution models are: CFl48MD, CF248LD, CF348CD, CFl48MJ, CF248LJ, CF348CJ, CF348CP and so on. The typical application circuit is shown as above.
