CASCODE_RF_AMPLIFIER

Published:2009/7/9 1:23:00 Author:May | From:SeekIC

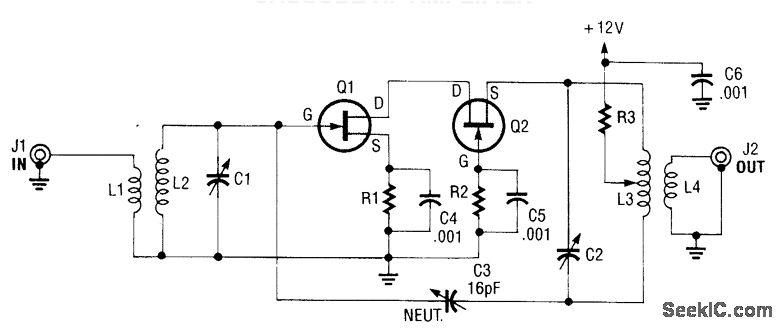

A cascode amplifier using two MOSFETs is shown in the diagram. L2C1 and L3C2 resonate to the frequency in use. The circuit has the advantage of good gain, low NF, and excellent linearity. Q1 and Q2 can be MPF102 or 2N4416.
