CASCADED_EMITTER_FOLLOWER_WITH_CURRENT_BIAS

Published:2009/7/10 5:33:00 Author:May | From:SeekIC

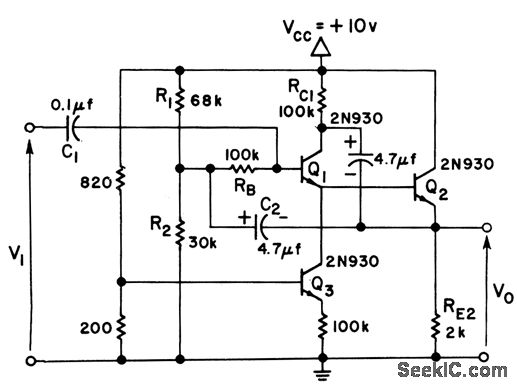

Improved frequency response is obtained by biasing Q1 with current generator in emitter or leg.Input impedance is 6 meg. Frequency response is within 3 db from 10 cps to 1 Mc,-Texas Instruments Inc., solid-Stale Communications, McGraw-Hill.N.Y., 1966,p 181.
