CASCADED_AMPLIFIER

Published:2009/7/3 3:46:00 Author:May | From:SeekIC

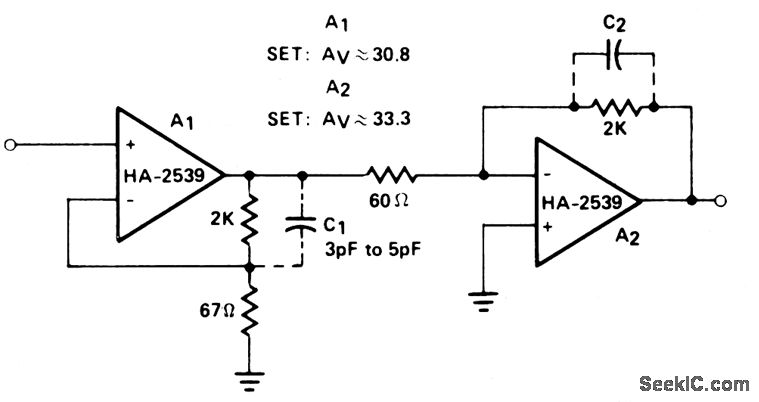

Cascaded amplifter sections are used to extend bandwidth and increase gain. Using two HA-2539 devices, this circuit is capable of 60-dB gain at 20 MHz.
