C1010 quartz monolithic integrated circuit diagram

Published:2011/5/9 2:28:00 Author: | Keyword: quartz monolithic | From:SeekIC

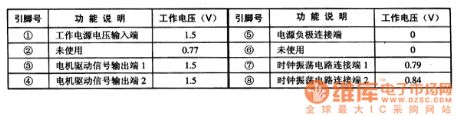

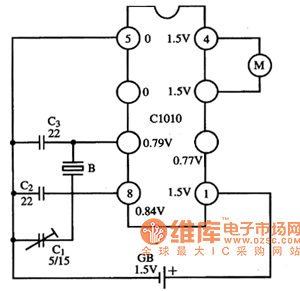

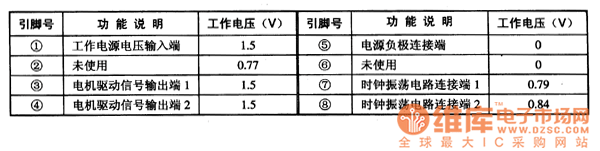

C1010 is a piece of quartz monolithic integrated circuit.It's widely used in various brands of quartz clock circuit, such as Polaris, rose film series. 1. pin functions and data C1010 integrated circuit uses 8-pin dual small package.The pin functions and data are listed in Table 1. Table 1 C1010 integrated circuit's pin functions and data 2.Typical application circuit The typical application circuit of quartz's control circuit which is composedof C1010 integrated circuit is shown in Figure 1. Figure 1 typical application circuit of C1010 integrated circuit
