Biostable Control Circuit

Published:2011/7/21 8:58:00 Author:Joyce | Keyword: Biostable , Control | From:SeekIC

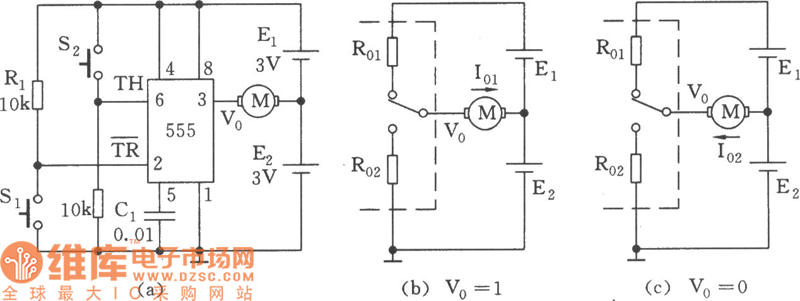

Bistable mode of 555 is applied less commonly compared with monostable mode and nonstable mode. Bistable mode means the circuit it forms will be triggered by pressing R-S. As shown in the figure is micro-motor’s forward/reserve control diagram working under biostable mode.
