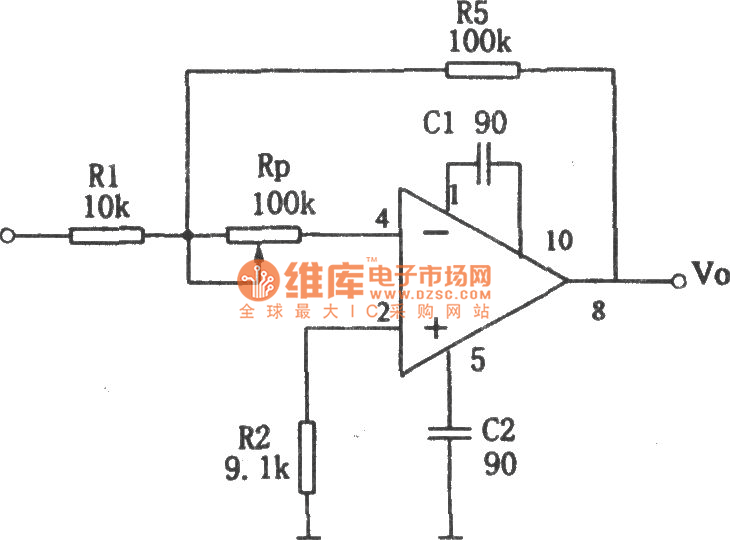

Bias compensation broadband amplification circuit diagram

Published:2011/8/11 2:11:00 Author:Rebekka | Keyword: Bias compensation, broadband amplification | From:SeekIC

The voltage amplifier multiples of the circuit parameters is: Av =-10, the voltage conversion speed is larger than 70 v/u s, half power bandwidth can be up to 400 kHz above, its gain products of bandwidth is about 30 MHz. The working temperature of the LH0003with10-pin metal circular encapsulates is 0 ~85 ℃. The storage temperature is 65 ~ 150 ℃. When it uses the LH0003 chip, its working temperature is 125 ℃ and 55, the storage temperature is 65 ~ 150 ℃. Figure (b) shows the LH0003 / LH0003C integrated chips tube feet arrangment diagram.
