Battery_powered_load_cell_amplifier_for_discontinuous_service

Published:2009/7/21 3:16:00 Author:Jessie | From:SeekIC

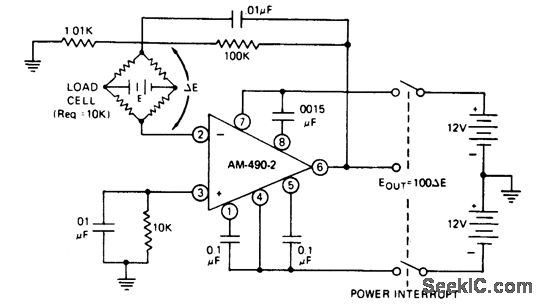

Battery-powered load-cell amplifier for discontinuous service. The AM-490-2 is an 8-pin TO-99 differential-input chopper-stabilized op amp. For power interrupt applications the amplifier has a warm-up period of 200 ms (courtesy Datel Systems, Inc.).
