Basic_dc_stabilized_composite_amplifier

Published:2009/7/23 23:41:00 Author:Jessie | From:SeekIC

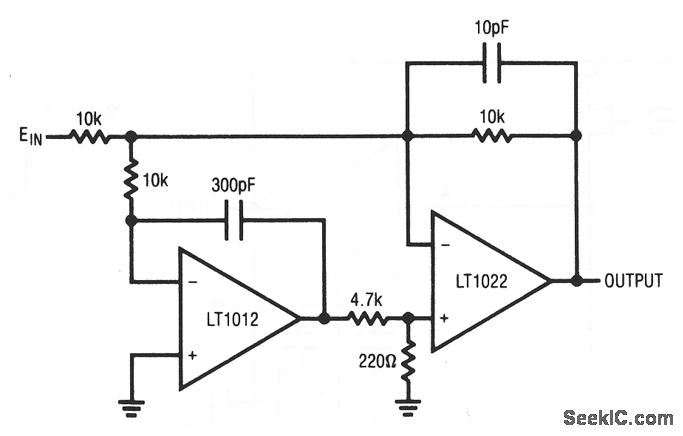

This composite amplifier combines the LT1012's 35-μV offset and 1.5 V/℃ drift, with the LT1022's 24 V/μs slew rate and 300-kHz full power bandwidth, to provide both high speed and low drift/offset. Input bias is about 100 pA.
