Balance_differential_amplifier_with_a_controlled_constant

Published:2009/7/21 2:09:00 Author:Jessie | From:SeekIC

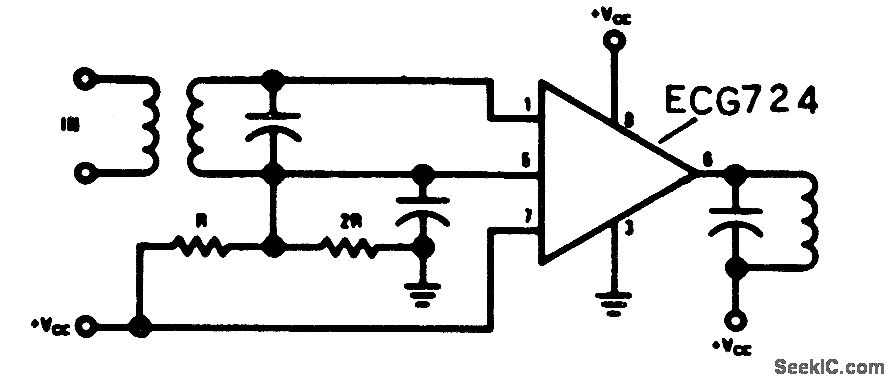

Balance differential amplifier with a controlled constant-current-souroe drive and AGC capability. Operation can be from DC to 120 MHz. Supply voltage is typically 9 to 12 volts (courtesy GTE Sylvania Incorporated).
