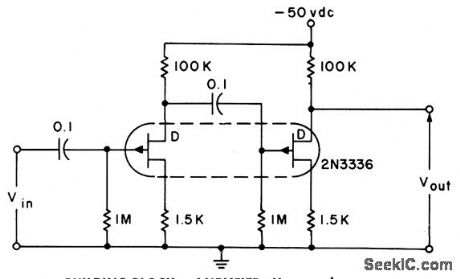

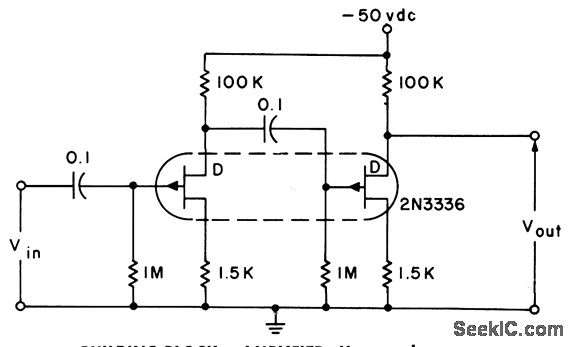

BUILDING_BLOCK_AMPLIFIER

Published:2009/7/14 23:42:00 Author:Jessie | From:SeekIC

Has voltage gain of 1,000 and gain-bandwidth product of 15 Mc. High-fidelity audio preamp can be designed with two such packages, one with equalization network and one with tone control network.-L. J. Sevin, Jr., Field-Effect Transistors, McGraw-Hill, N.Y., 1965, p 74.
