BUFFER_MEMORY_SENSE_AMPLlFIER

Published:2009/7/12 21:13:00 Author:May | From:SeekIC

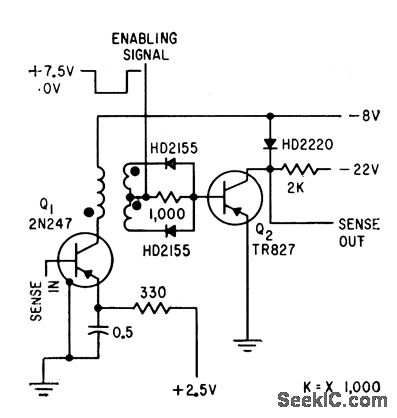

Uses coincident-current technique. Full-wave rectifier is required at secondary of transformer because sense output can be of either polarity. Enabling signal turns on sense amplifier, to permit discrimination between memory core outputs during unload and load cycles.-D.Haagens, Compact Memories Have Flexible Capacities, Electronics, 32:40, p50-53.
