BTL power amplifier circuit compoed of LF4100

Published:2011/8/4 20:46:00 Author:Rebekka | Keyword: BTL power amplifier | From:SeekIC

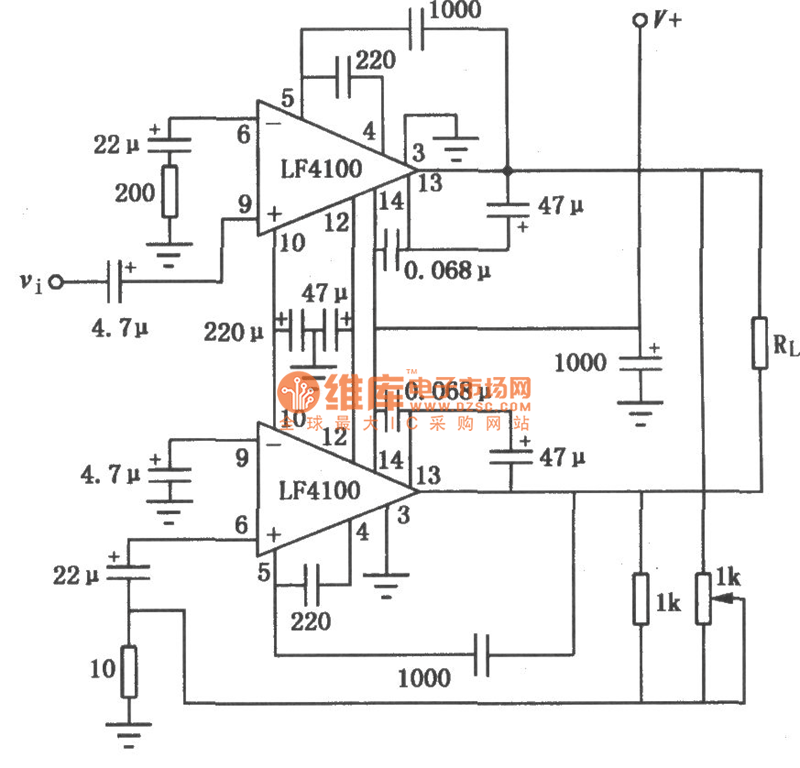

LF4100, 4101 and 4102 are mainly used for tape recorders, amplifiers and other electronic equipment of audio power amplifier. The device has a wide frequency response, high fidelity, high stability and the feature of easy to adjust stc. BTL power amplifier circuit composed of LF4100, 4101 and 4102 is shown as above.
