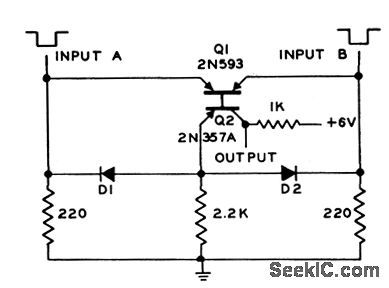

BILATERAL_TRANSISTOR_COMPARATOR

Published:2009/7/11 5:04:00 Author:May | From:SeekIC

Used as voltage comparator by connecting one input to some reference level and allowing sec ond input to vary. Can also serve as digital comparator in digital computer, to ascertain when two numbers become equal. Output drops to zero when numbers in digital form are equal.-Comparator Uses Bilateral Tran-sistor, Electronic Circuit Design Handbook, Mactier Pub. Corp, N.Y. p91.
