BIDIRECTIONAL_PF_AMPLIFIER

Published:2009/7/13 2:41:00 Author:May | From:SeekIC

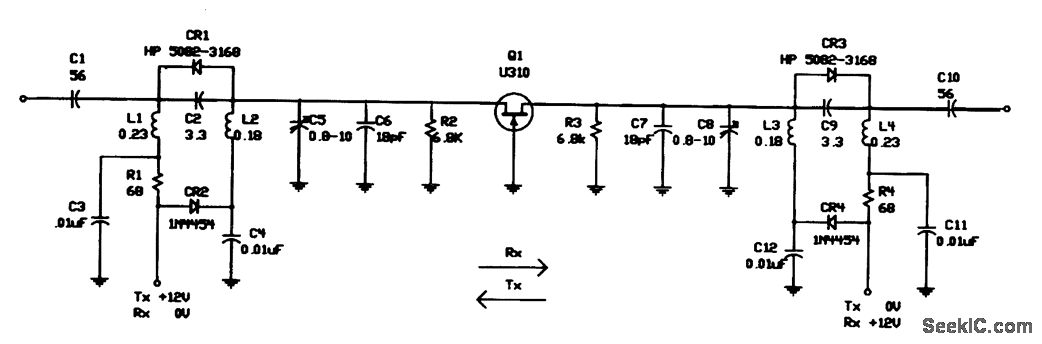

JFETS can often be used with the source and drain interchanged. This interesting circuit makes use of this fact as a bidirectional RE amplifier at 70.0455 MHz. It is useful for transceiver applications.
