BIDIRECTIONAL_COMPOUND_OP_AMP

Published:2009/7/10 0:51:00 Author:May | From:SeekIC

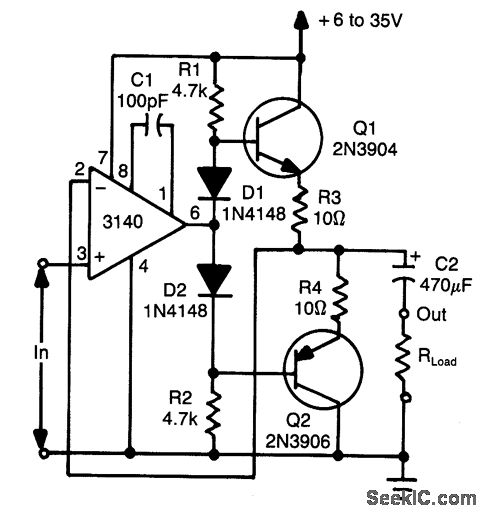

Using two transistors (Q1 and Q2), a bidirec-tional op amp can source or sink up to 50 mA. D1 and D2 provide bias for Q1 to eliminate dead-zone effects.
