BAXANDALL_TONE_CONTROL_AUDIO_AMPLIFIER

Published:2009/7/11 1:12:00 Author:May | From:SeekIC

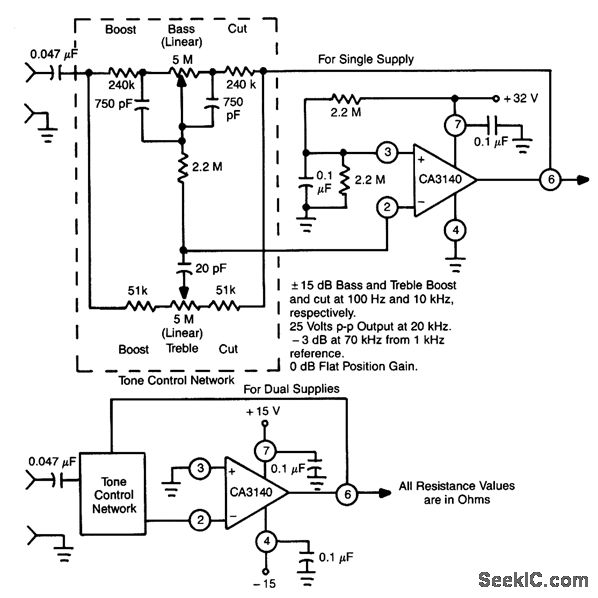

This circuit exploits the high slew rate, high input impedance, and high output-voltage capability of CA3140 BiMOS op amp. It also provides mid-band unity gain with standard linear potentiometers.
