BATTERY_POWERED_BUFFER_AMPLIFIER_FOR_STANDARD_CELL

Published:2009/6/24 21:51:00 Author:May | From:SeekIC

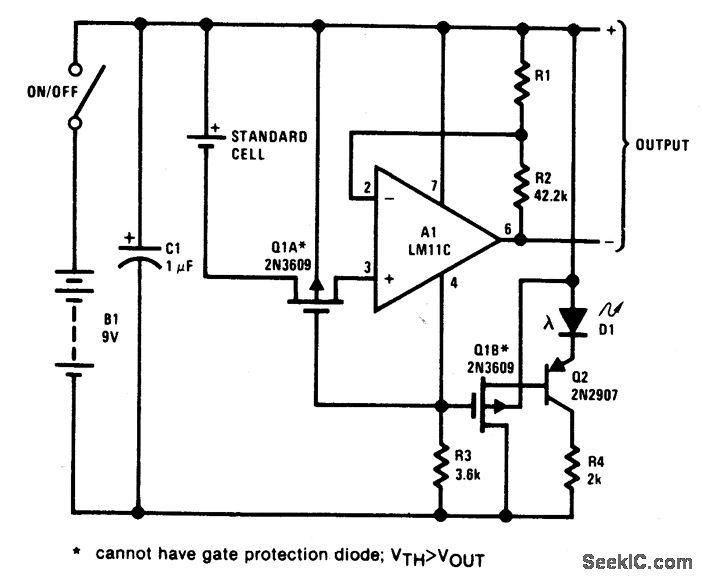

This circuit has negligible loading and disconnects the cell for low supply voltage or overload on output. The indicator diode extinguishes as disconnect circuitry is activated.
