BASIC_TRANSISTOR_AMPLIFIER_CIRCUITS

Published:2009/6/24 3:29:00 Author:May | From:SeekIC

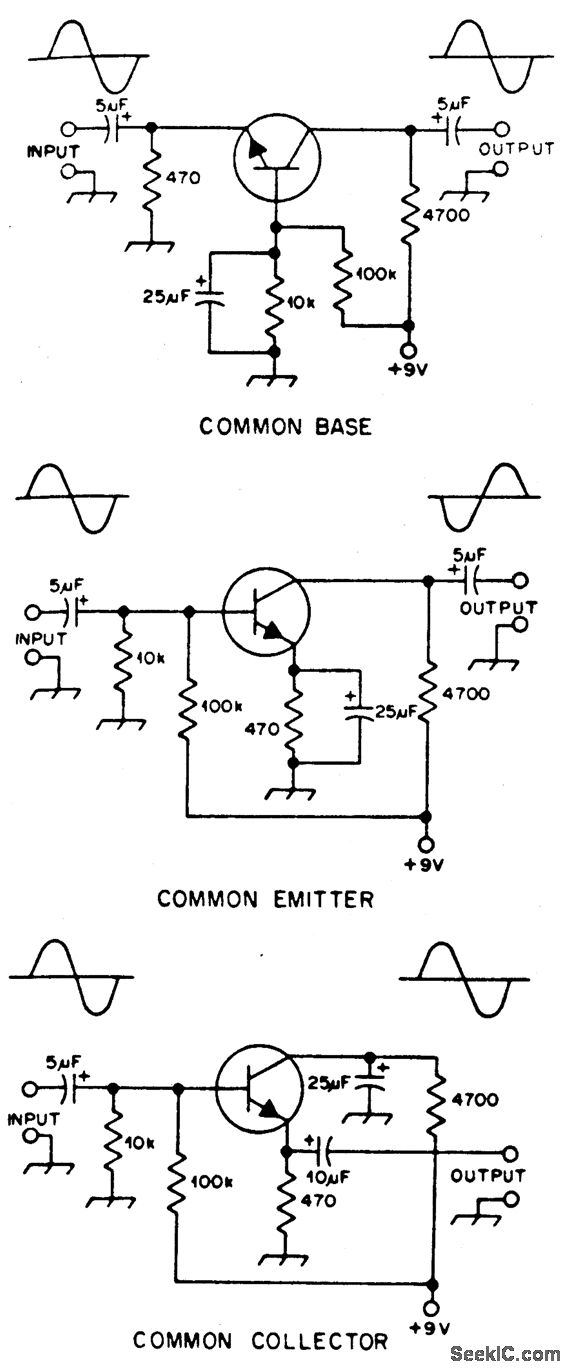

Typical component values are given for use at audio frequencies, where these circuits are used most often. The input and output phase relationships are shown.
