BASE_TRIGGERING_WITH_HYBRID_GATE

Published:2009/7/23 21:18:00 Author:Jessie | From:SeekIC

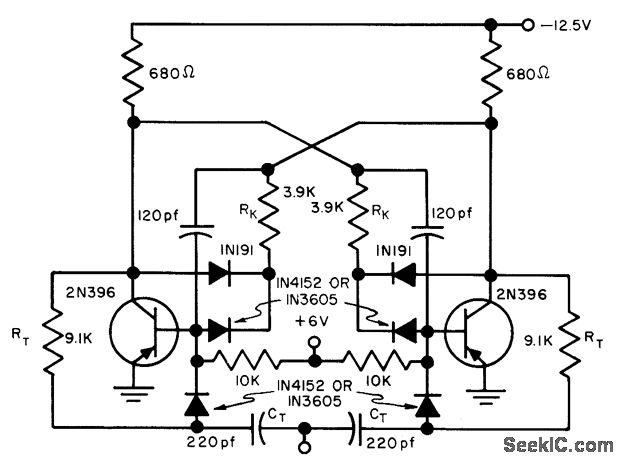

Combines sensitivity of base triggering and trigger amplitude variation of collector triggering. Bias potential varies in order to direct trigger pulse more effectively. This steering scheme is attractive for some nonsaturated circuits, when collector-base voltage for conducting transistor is very small- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 199.
