BALANCING_D_C_AMPLIFIER

Published:2009/7/14 20:21:00 Author:May | From:SeekIC

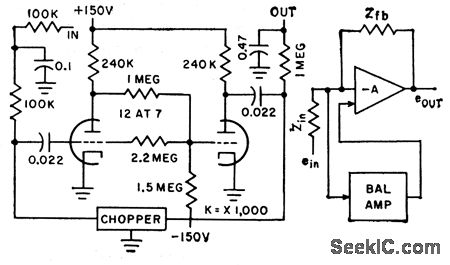

Gain is 300.Detects slow changes al summing point of operational amplifier, amplifies drift voltage, and provides opposite-polarity output signal for second input grid of operational amplifier, much as in null-seeking servomechanism.-L.S. Klivans, D-C Amplifiers for Control Systems, Electronics, 31:47, p96-100.
