BA6664-the servo-driven integrated circuit

Published:2011/5/12 2:06:00 Author:Borg | Keyword: intergrated circuit, servo-driven | From:SeekIC

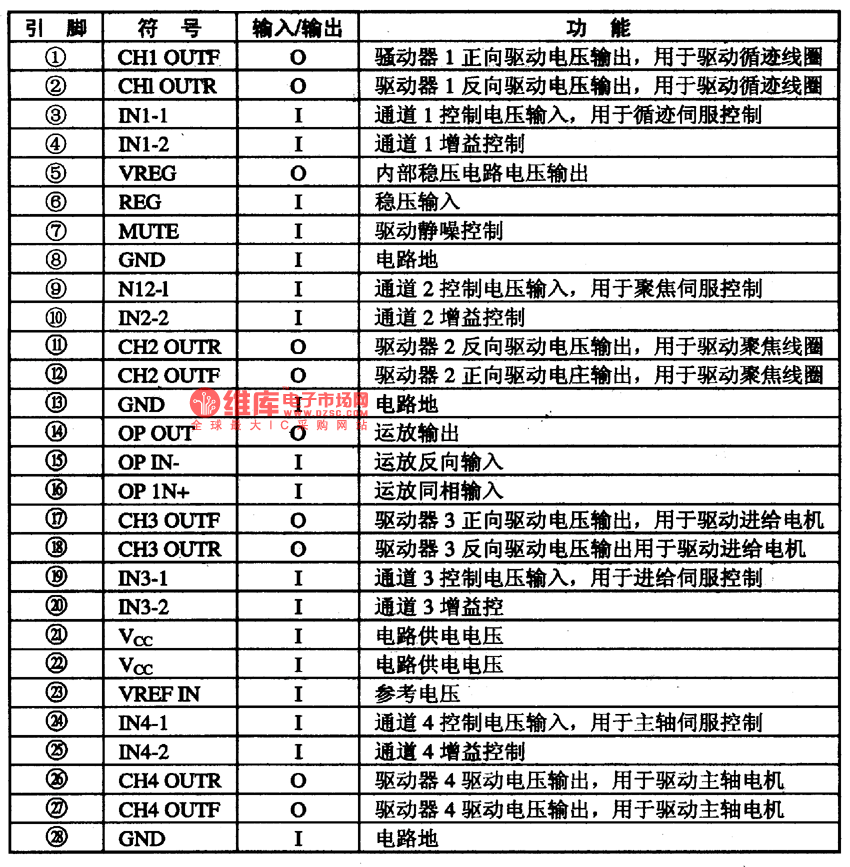

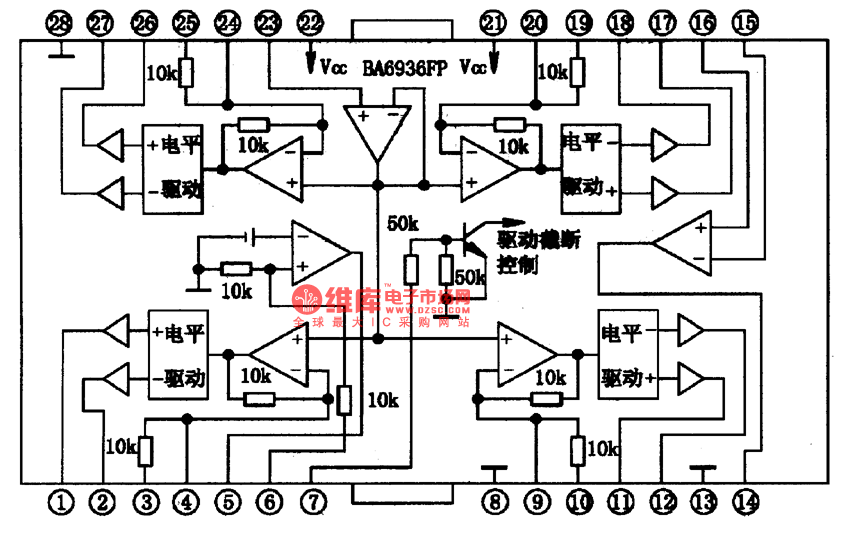

BA6396FP is a servo-driven intergrated circuit produced by Rom Corp., Japan, which is used as servo-drivers in VCD, SVCD and DVD.1.The internal circuitBA6396FP contains sub-circuits of 4-channel BTL, silence and noise control and overheat protection and the internal circuit is shown in Figure 1. 2.pin functionsBA6396FP is in flat 28-pin dual-line package, whose pin functions are listed in Table 1.
