BA6566 call integrated circuit

Published:2011/6/14 1:31:00 Author:Christina | Keyword: call, integrated circuit | From:SeekIC

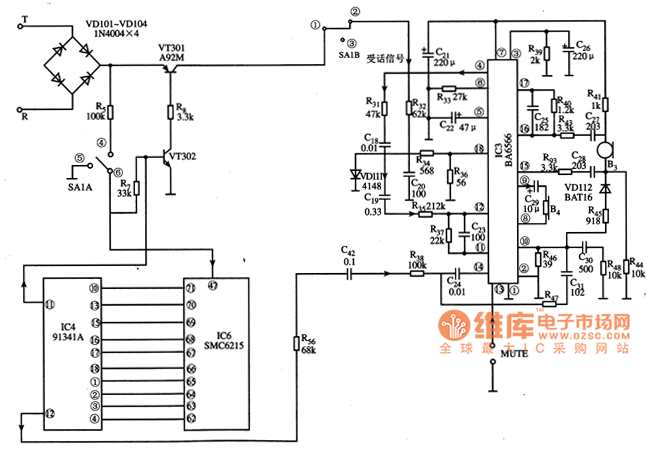

The BA6566 is designed as one kind of call integrated circuit that can be used in the Panasonic series telephone. 1.Pin functions and data The BA6566 integrated circuit is in the 18-pin dual-row DIP package, the pin functions and data is as shown in table 1. Table The pin functions and data of the BA6566 2.Typical application circuit The call system typical application circuit which is composed of the BA6566 is as shown in figure 1. Figure 1 The call system typical application circuit which is composed of the BA6566
