BA6286N-the bilateral control integrated circuit of motor drive

Published:2011/5/17 20:47:00 Author:Borg | Keyword: bilateral control, integrated circuit | From:SeekIC

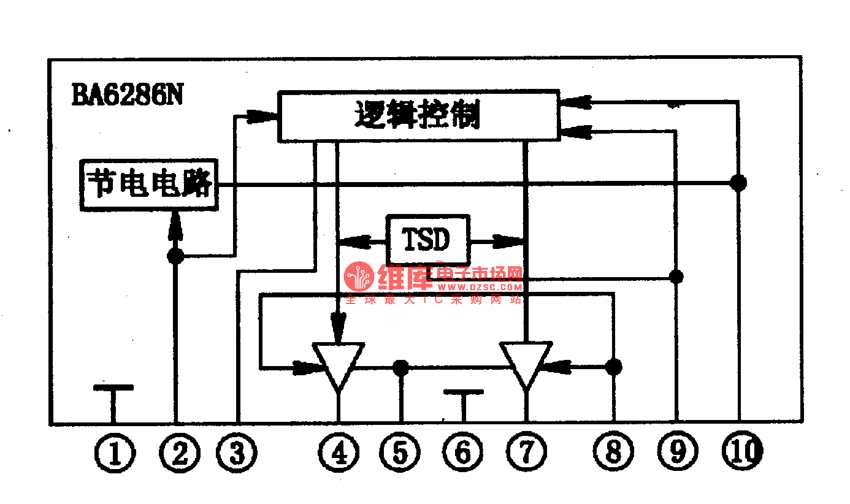

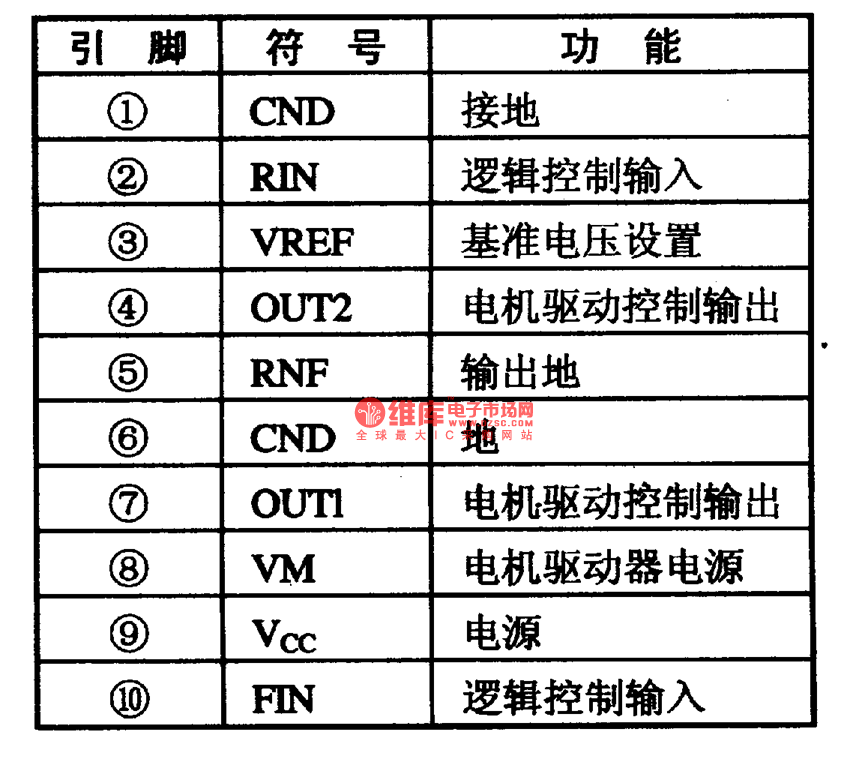

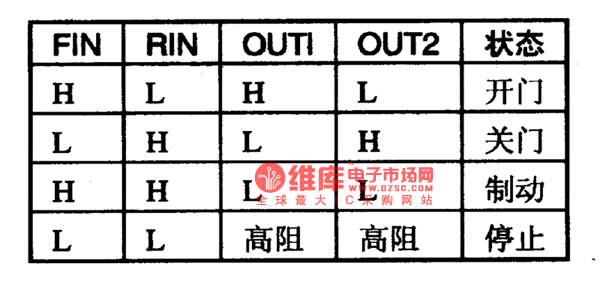

BA6286N is a bilateral control integrated circuit of motor drive produced by Toyo Corp., which is used in CD ,VCD,SVCDand VCD players as motor drivers.1.the internal circuitBA6286N contains logic control circuit and energy-saving circuit, which can provide drive current of 100Am, and its internal circuit is as shown in Figure 1. 2.pin functionsBA6287N is in 10-lead single line package, whose pin functions are listed in Table 1.Notes: the logic control values of BA6287N are listed in Table 2, by which we can judge if IC is malfunctioning.
