BA5902FP-laser head servo-driven integrated circuit

Published:2011/5/18 22:13:00 Author:Borg | Keyword: laser head, servo-driven | From:SeekIC

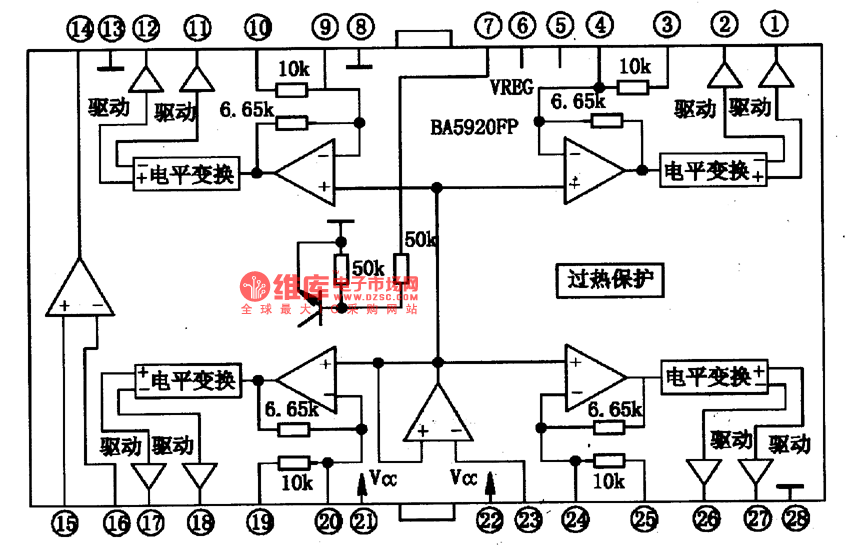

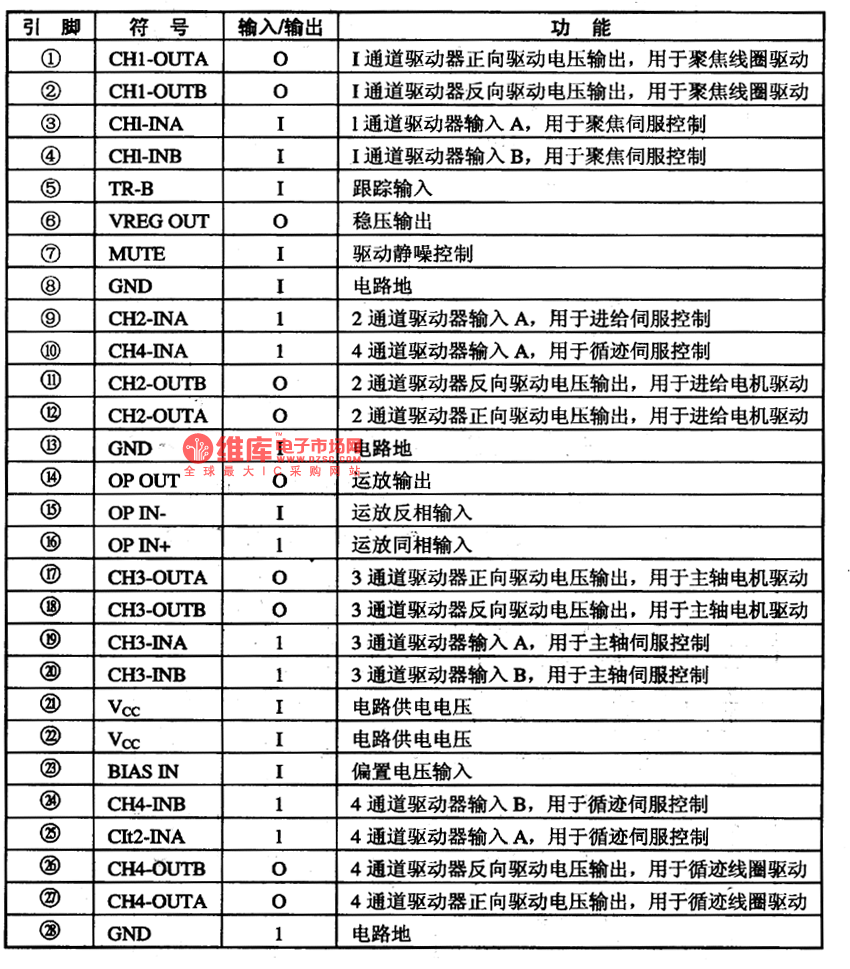

BA6196FP is a motor-driven integrated circuit produced by Toyo Corp., which is used in laser heads to laser players.1.The internal circuitBA6196FP contains 4-channel BTL drive circuit and drive silence-noise control circuit, whose internal circuit is shown in Figure 1. Figure 1 the internal circuit of BA5902FP pin functions BA5902FP is in 28-lead dual in-line package, whose pin functions are listed in Table 1. Table 1 pin functions and data of BA5902FP chips
