BA3520-the integrated reproducing circuit of single door stereo

Published:2011/5/14 21:33:00 Author:Borg | Keyword: reproducing circuit, single door | From:SeekIC

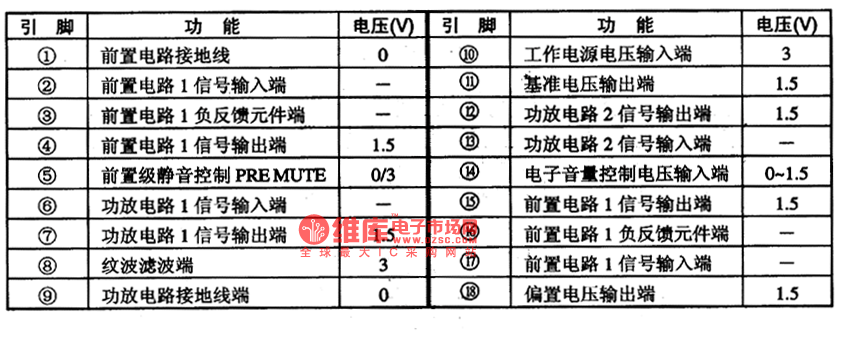

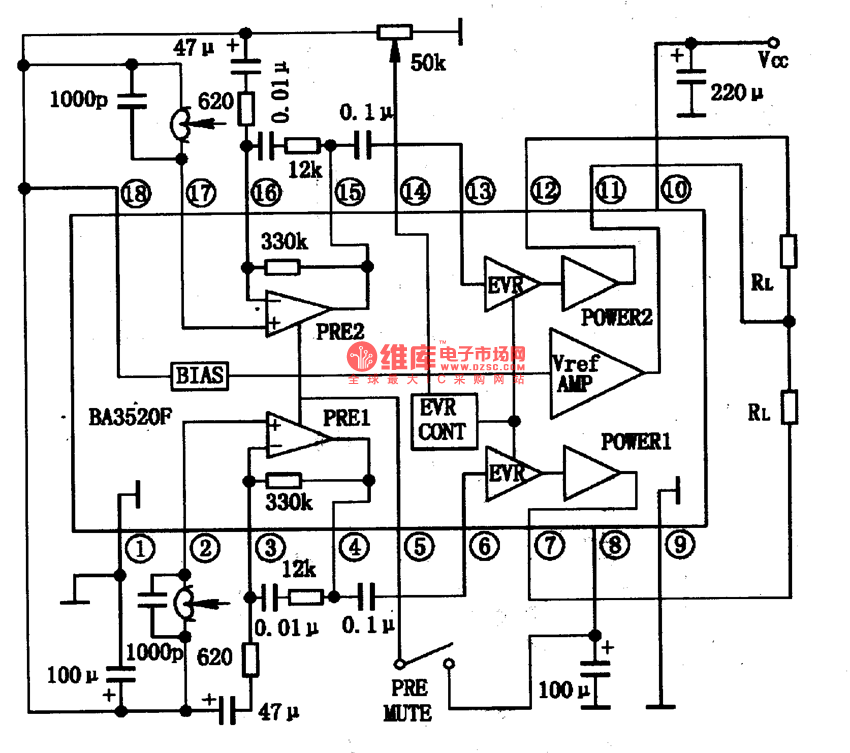

BA3520 is an integrated reproducing circuit of low-voltage single door stereo reproducing produced by Toyo Corp., Japan, which is widely used in low-voltage walk-man and other low-voltage radios.the internal circuit and pin functions of BA3520BA3520 contains sub-circuits of dual head, dual power amplifier and power volume control, whose internal circuit and typical application circuit are listed in Figure 1. It is in flat 18-lead dual line package, whose pin functions and data are listed in Table 1. Figure 1 the internal circuit and typical application circuit of BA3520F
