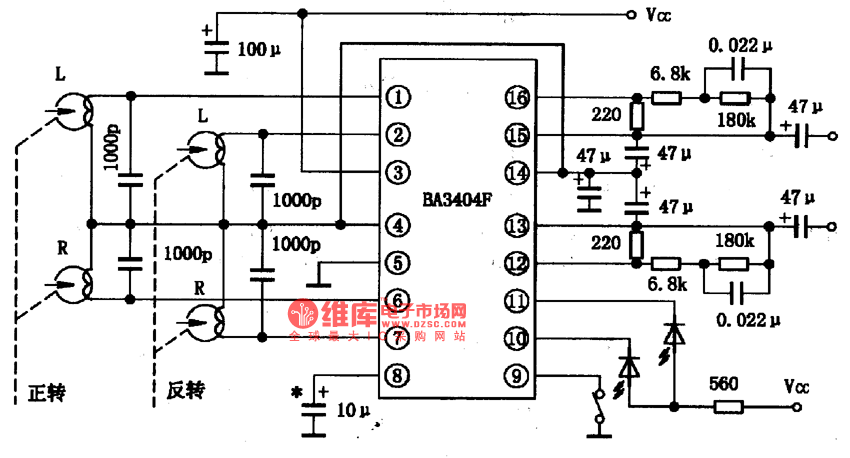

BA3404F-the integrated preamplifier circuit of self-reversal reproducing

Published:2011/5/15 5:22:00 Author:Borg | Keyword: preamplifier circuit, self-reversal | From:SeekIC

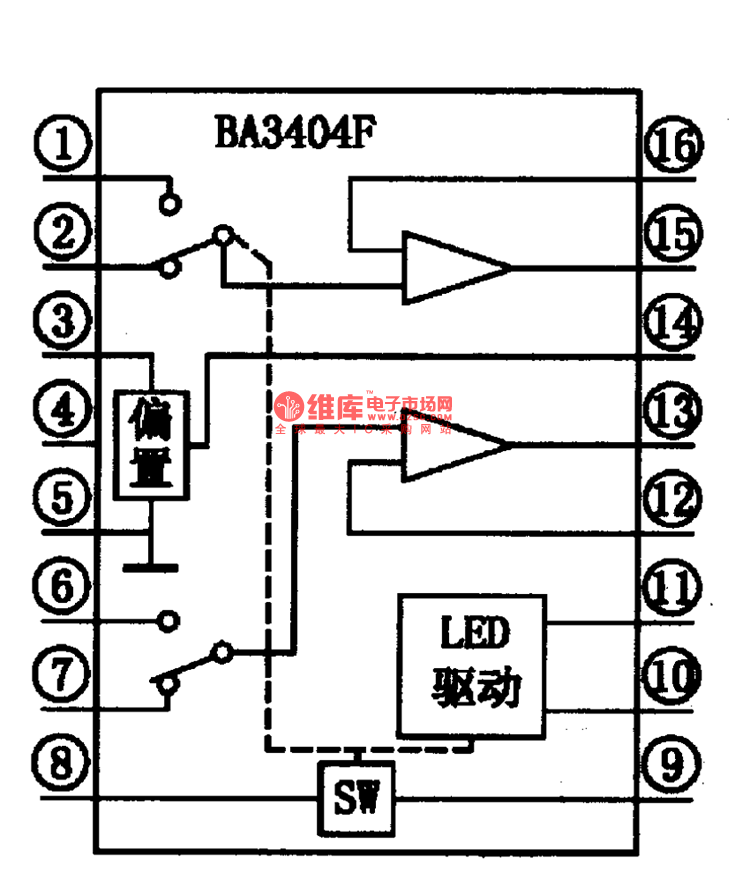

BA3404F is an integrated circuit of low-voltage self-reversal reproducing preamplifer and frequency compensation. 1.the internal circuit and pin functions of BA3404FBA3404F contains two lines of balanced preamplifier circuits, tap pros and cons input shifting e-switch circuit and LED drive and bias circuits,etc. 2.main parameters of BA3404
