Audio mixer amplifier circuit diagram

Published:2012/12/19 1:26:00 Author:Ecco | Keyword: Audio mixer amplifier | From:SeekIC

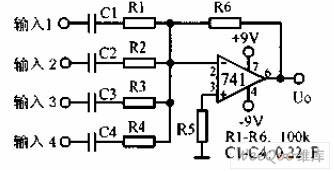

The audio mixer amplifier is a four-input audio mixer amplifier, and the output voltage is equal to the respective input signal. If the voltage gain is greater than 1, the value of R6 may be changed.
