Audio Graphic Equaliser

Published:2012/10/25 2:28:00 Author:muriel | Keyword: Audio Graphic Equaliser | From:SeekIC

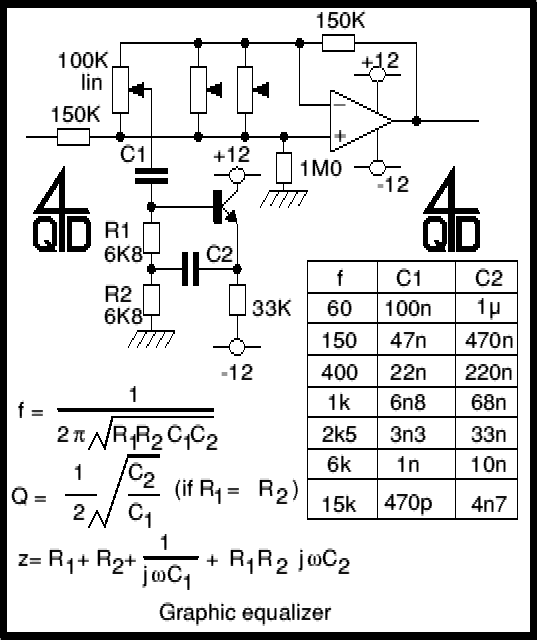

Audio graphic equalizers are very common as commercial products (for Hi-fi, car audio and stage use) but circuits for them are very rarely published. I didn't design this one but it's really very simple. The details shown are for a 7 band but the principle can be extended to almost any number of bands - if you can find accurate enough components.
