Asymmetric Pre-amplifier Circuit

Published:2013/3/14 3:13:00 Author:Ecco | Keyword: Asymmetric Pre-amplifier | From:SeekIC

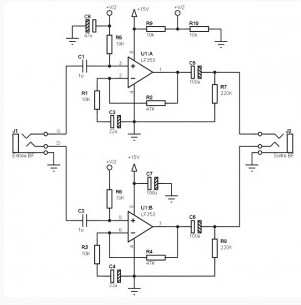

This Asymmetric Pre amp circuit is designed to amplify a signal little AF stereo line-level, and has an unbalanced input and output. It is perfect to add that little something missing to attack a power amplifier in good condition For example, to slightly increase the output level of a portable player like “MP3″ or “FM tuner” supply power single or symmetrical (double), as desired.
