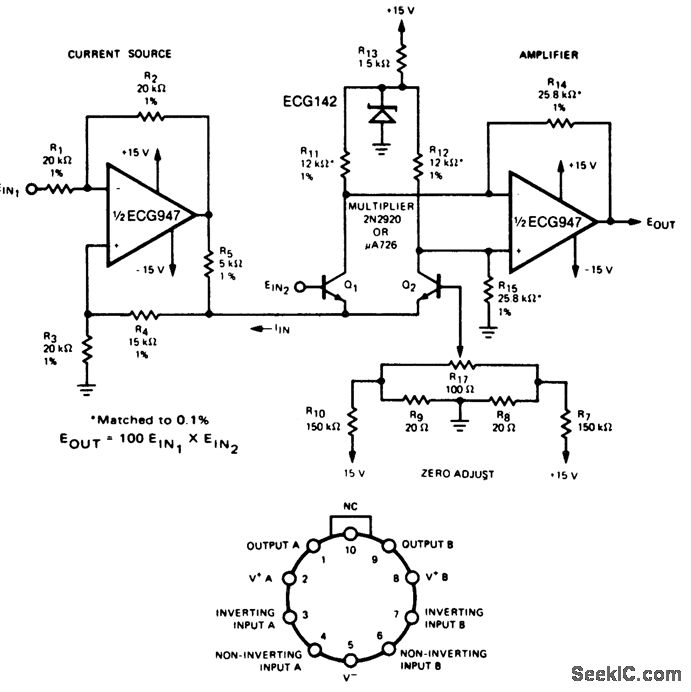

Analog_multiplier_using_an_ECG947_dual_operational_amplifier

Published:2009/7/21 2:03:00 Author:Jessie | From:SeekIC

Analog multiplier using an ECG947 dual operational amplifier. The ECG947 is short-circuit protected and requires no external components for frequency compensation (courtesy GTE Sylvania Incorporated).
