Power Amplifier uPC1280V Circuit

Published:2011/3/29 22:05:00 Author:may | Keyword: Power Amplifier | From:SeekIC

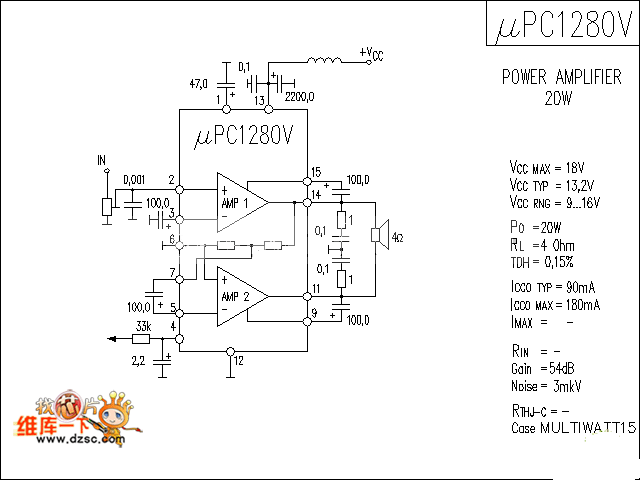

The Power Amplifier uPC1280V Circuit is shown in the following diagram:
