Norton_triangle_wave_generator

Published:2009/7/17 4:30:00 Author:Jessie | From:SeekIC

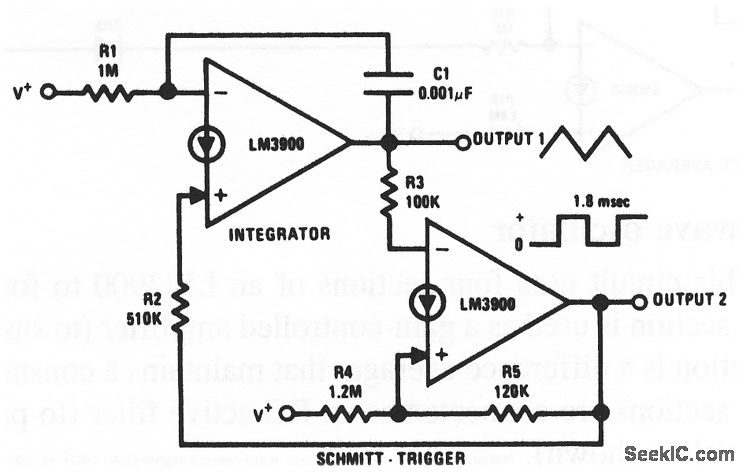

This circuit uses one section of an LM3900 to form a triangle-wave generator. Notice that the circuit also produces a square-wave output at the same frequency. National Semiconductor Linear Applications Handbook, 1991, p 233
