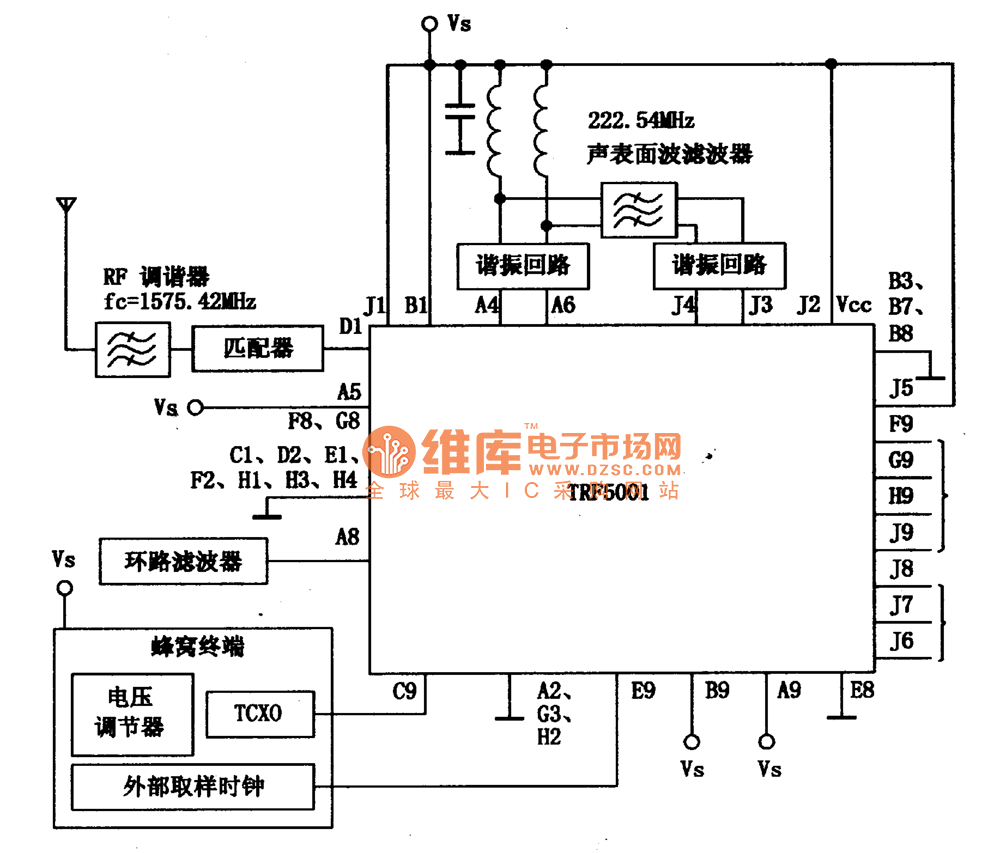

TRF5O01 GPS RF receiving and collecting integrated circuit

Published:2011/7/13 20:07:00 Author:leo | Keyword: GPS, RF, Integrated circuit | From:SeekIC

TRF5O01 is a type of GPS RF receiving and collecting integrated circuit used in GPS positioning system. Function features: TRF5O01 has the cellular terminal and emitter with sources. It contains low noise amplifier mixer. The first and second LO set-frequency synthesizer and four bit ADC and so on are always used in high sensibility GPS system. TRF5O01 working voltage is 2.7 V to 3.3 Vand the current consumption is super light. When the voltage is 2.7 V, its current consumption is 49 mA.
