SL-560C IF amplifier circuit

Published:2011/6/17 10:46:00 Author:John | Keyword: IF amplifier | From:SeekIC

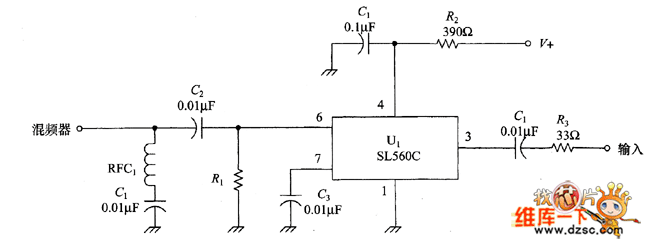

SL560C is basically a gain block that can be used in RF and IF frequency area. Figure shows a circuit based on SL560C. SL560C is the single-ended output circuit transferred by differential input. And the used input end needs to be set by the bypass of capacitor C3. Since this is a broadband circuit, the input or output circuit has no tuning function. The input circuit includes a 0.02μF input coupling capacitor and an RF choke (RFC1). figure: SL-560C IF amplifier circuit
