RF_PREAMPLIFIERS

Published:2009/6/18 2:27:00 Author:May | From:SeekIC

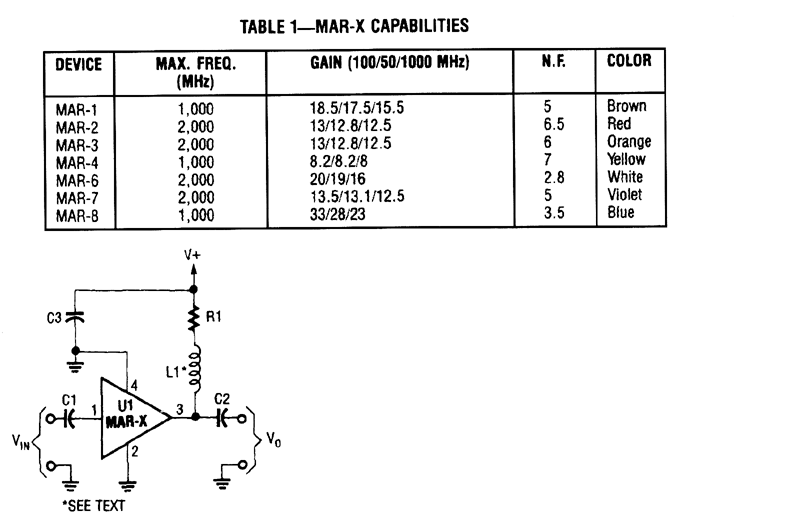

In this basic MAR-x-based circuit, both the input and output are comprised of a single dc-blocking capacitor (C1 and C2 for the input and output, respectively). The dc power-supply net-work (comprised of L1 and BI) is attached to the MAR-x via the RF-output terminal (lead 3).
