RF2360 Linear General Purpose Amplifier Pin Circuit

Published:2011/5/5 0:58:00 Author:Robert | Keyword: Linear, General Purpose Amplifier, Pin | From:SeekIC

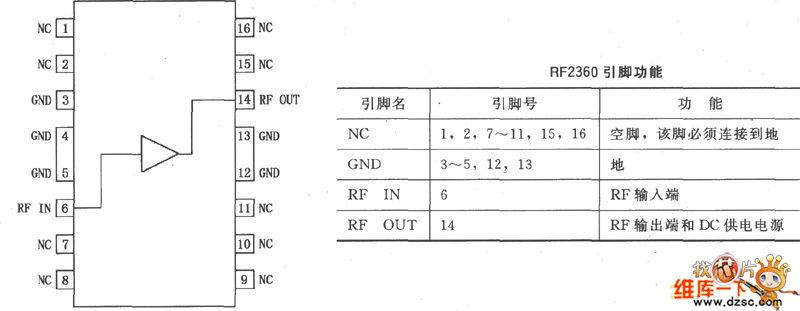

The RF2360 is a general purpose, low-cost, high-linearity RF amplifier IC, and is manufactured on an advanced gallium arsenideheterojunction bipolar transistor (HBT) process. It has been designed for using as an easily cascadable 75Ω gain block with a noise figure of less than 2dB. Gain flatness is better than 0.5dB from 5MHz to 1000MHz, and high linearity makes this part ideal for cable TV applications. Other applications are include IF and RF amplification in wireless voice and data communication products which operating in frequency bands up to 1000MHz. The device is self-contained with 75Ω input and output impedances providing less than 2:1 VSWR matching. RF2360 is featured in a SOP-16 squaredbatwing package, and its pinout is shown in the picture below.
